How to Make a Solar Stove

Imagine cooking your meals using only the power of the sun. It’s not just a dream; it’s possible with a solar stove! Building your solar stove is easy, fun, and good for the environment.

You don’t need fancy materials or special skills to make a solar stove. You can create a powerful cooking tool with simple items you probably already have at home. This guide will show you how to make a solar stove step by step. Save money, help the planet, and enjoy the adventure of solar cooking.

Materials Needed to Make a Simple Solar Stove at Home

List of materials required to make a simple solar stove at home is enumerated below:

1. Cardboard box (medium to large size): The main body of the solar stove, providing structure and insulation.
2. Aluminium foil: Reflects sunlight into the box, increasing the temperature inside.
3. Black construction paper: Absorbs heat, helping to raise the internal temperature of the stove.
4. Clear plastic wrap: Creates an airtight seal to trap heat inside the box.
5. Glue or tape: Secures the aluminium foil, plastic wrap, and other components in place.
6. Scissors or box cutter: Used to cut the cardboard box, aluminium foil, and other materials to the required sizes.
7. Ruler: Ensures precise measurements for cutting and assembling the solar stove.
8. Oven thermometer (optional): Measures the internal temperature of the stove to monitor cooking conditions.

Explanation of why each material is used:

• Cardboard Box: Acts as the main structure of the solar stove, holding all the components together and providing insulation to help retain heat.
• Aluminium Foil: Its reflective properties direct sunlight into the box, significantly increasing the heat inside.
• Black Construction Paper: Placed at the bottom of the box, it absorbs sunlight and converts it into heat, further raising the temperature.
• Clear Plastic Wrap: Used to cover the top of the box, it creates an airtight environment that traps heat, making the solar stove more efficient.
• Glue or Tape: Essential for securing the aluminium foil and plastic wrap, ensuring they stay in place and function correctly.
• Scissors or Box Cutter: Tools for cutting the materials to the required shapes and sizes, ensuring a precise and clean assembly.
• Ruler: Helps in measuring the materials accurately, ensuring all parts fit together well.
• Oven Thermometer (Optional): Allows for monitoring the internal temperature, ensuring the food is cooked properly and safely.

These materials work together to create an effective and efficient solar stove, harnessing the power of the sun to cook food in an eco-friendly way.

How Does a Solar Stove Work

A solar stove works by harnessing the energy from the sun to cook food. Here’s a breakdown of how it operates:

1. Capturing Sunlight: Solar stoves use reflective surfaces, like mirrors or aluminum foil, to capture and concentrate sunlight onto a specific area.
2. Converting Light to Heat: The concentrated sunlight is directed onto a dark-colored cooking pot or a black-painted surface inside the stove. Dark colors absorb more light and convert it into heat.
3. Trapping Heat: Many solar stoves have an insulated chamber or a clear cover (like glass or plastic) to trap the heat. This prevents the heat from escaping and raises the temperature inside the stove.
4. Cooking Food: The trapped heat cooks the food inside the pot, similar to how a conventional oven or stove works. The temperature inside a solar stove can reach up to 250°F (121°C) or higher, depending on the design and the amount of sunlight.

Click here to learn “how does the solo stove work?”

Types of Solar Stoves

Solar cooking works by converting sunlight into heat energy, which is then trapped and used to cook food. There are three main types of solar stoves:

1. Box Solar Stove: Uses an insulated box to trap heat.
2. Parabolic Solar Stove: Uses a parabolic reflector to focus sunlight onto a cooking pot.
3. Panel Solar Stove: Uses reflective panels to direct sunlight into a cooking container.

Choosing the Right Design

• Box Solar Stove: Ideal for slow cooking and baking. It’s simple to build and use.
• Parabolic Solar Stove: Best for high-temperature cooking, like frying. Requires precise construction for maximum efficiency.
• Panel Solar Stove: Easy to construct and portable. Suitable for moderate cooking tasks.

How to Make a Solar Stove: Step-by-Step Guide

Step 1: Preparing the Box

1. Selecting the Box:
   • Choose a medium to large cardboard box. The size of the box will determine the cooking area and the amount of heat it can trap.
   • Ensure the box is clean, dry, and free from any damage or holes.
2. Cutting the Flap:
   • Lay the box on its side with the opening facing you.
   • Using a ruler, measure about 2 inches (5 cm) from the edges of the top flap and mark these measurements with a pencil.
   • Draw a rectangle on the top flap, leaving a 2-inch border on all sides.
   • Carefully cut along the marked lines on three sides, leaving one side attached to create a flap that can be opened and closed.
   • Fold the flap back to create a reflector that will direct sunlight into the box.

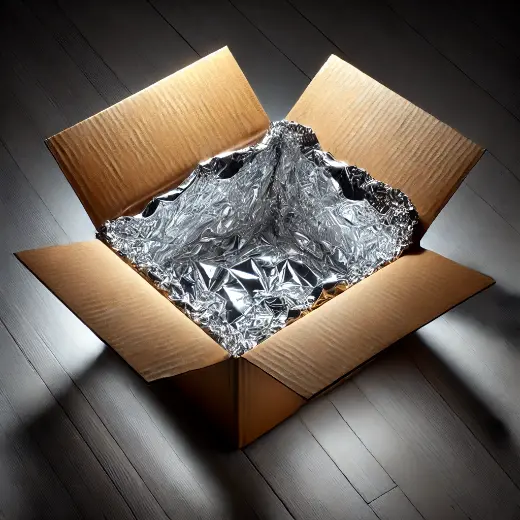

Step 2: Lining the Box with Aluminium Foil

1. Preparing the Foil:
   • Cut pieces of aluminium foil large enough to cover the interior walls and bottom of the box.
   • Smooth out any wrinkles in the foil to maximize its reflective properties.
2. Applying the Foil:
   • Using glue or tape, attach the aluminium foil to the inside surfaces of the box.
   • Ensure the foil is securely attached and covers all areas without gaps or overlaps.
3. Covering the Flap:
   • Line the inside of the flap with aluminium foil, securing it with glue or tape.
   • This will allow the flap to reflect sunlight into the box when it is positioned correctly.

Step 3: Creating the Cooking Area

1. Black Construction Paper:
   • Cut a piece of black construction paper to fit the bottom of the box.
   • Place the paper at the bottom of the box, ensuring it lies flat and covers the entire area.
   • Secure the paper with a small amount of glue or tape to prevent it from moving.
2. Why Black Construction Paper:
   • Black absorbs more heat compared to other colors, helping to increase the temperature inside the box.
   • This layer will be the main cooking surface where you place the food items.

Step 4: Adding the Clear Plastic Wrap

1. Preparing the Wrap:
   • Cut a piece of clear plastic wrap large enough to cover the top opening of the box, with some extra to secure it around the edges.
2. Applying the Wrap:
   • Stretch the plastic wrap tightly over the top opening of the box.
   • Use tape to secure the plastic wrap along the edges, ensuring it is airtight.
   • Make sure the wrap is smooth and free of any gaps or wrinkles.
3. Importance of Airtight Seal:
   • The clear plastic wrap creates a greenhouse effect, trapping heat inside the box.
   • An airtight seal is crucial to maintaining a high internal temperature for cooking.

Step 5: Making the Reflector Flap

1. Adjusting the Flap:
   • Position the flap so it can reflect sunlight into the box.
   • You may need to prop it up with a stick or another object to hold it at the correct angle.
2. Testing the Angle:
   • Adjust the flap until you see the sunlight being directed into the box.
   • The angle of the flap can be adjusted throughout the day to maximize the amount of sunlight entering the box.
3. Securing the Flap:
   • Use tape or glue to ensure the foil on the flap is secure and does not move.
   • Ensure the flap remains adjustable so you can change its position as needed.

By following these steps, you will have a functional solar stove ready for use.

Building a Box Solar Stove

1. Construct the Box: Use a cardboard box or wooden frame. Line the inside with aluminum foil to reflect sunlight.
2. Create an Insulated Chamber: Fill the bottom with insulation material and paint the inside black to absorb heat.
3. Cover with Glass or Plastic: Place a clear glass or plastic sheet over the top to trap heat inside.
4. Add Reflectors: Attach reflective panels (e.g., a car sunshade) around the box to direct more sunlight into the stove.

Building a Parabolic Solar Stove

1. Shape the Reflector: Create a parabolic reflector using reflective material. Ensure it’s smooth and accurately shaped.
2. Build a Frame: Construct a sturdy frame to hold the reflector and the cooking pot.
3. Position the Cooking Pot: Place the pot at the focal point of the parabolic reflector, where the sunlight is most concentrated.
4. Adjust and Secure: Ensure the reflector is angled correctly to capture maximum sunlight.

Building a Panel Solar Stove

1. Create Reflective Panels: Cut reflective material into panel shapes.
2. Assemble the Panels: Arrange the panels to form a structure that directs sunlight into the cooking container.
3. Secure the Container: Place the cooking container in the center, ensuring it receives focused sunlight from all angles.

Testing Your Solar Stove

Before cooking, test your solar stove to ensure it reaches the desired temperature. Place a thermometer inside and monitor the temperature. Make sure to follow safety precautions, such as wearing protective gloves and never leaving the stove unattended.

Using the Solar Stove

Positioning the Solar Stove

1. Choosing the Location:
   • Select a sunny location with direct sunlight for the majority of the day.
   • Ensure the area is free from obstructions like trees, buildings, or other objects that could cast shadows on the stove.
2. Aligning the Stove:
   • Place the solar stove on a flat, stable surface.
   • Position the stove so that the open flap faces the sun.
   • Adjust the angle of the flap to reflect the maximum amount of sunlight into the box.
3. Securing the Stove:
   • If the stove is lightweight or there is wind, use weights or heavy objects to secure the stove and prevent it from moving.

Adjusting the Reflector Flap

1. Optimal Angle:
   • Throughout the day, adjust the angle of the reflector flap to follow the sun’s movement.
   • Ensure that the reflected sunlight is directed into the box to maintain consistent heating.
2. Propping the Flap:
   • Use a stick, ruler, or any other sturdy object to prop the flap at the desired angle.
   • Check periodically and adjust as needed to ensure maximum sunlight is being directed into the box.

Cooking with the Solar Stove

1. Preparing Food:
   • Cut food into smaller pieces to ensure even cooking.
   • Use dark, shallow pans or containers to absorb more heat.
   • Avoid using thick or heavy cookware as it can reduce the stove’s efficiency.
2. Placing Food Inside:
   • Open the plastic wrap covering the top of the box.
   • Place the food containers on the black construction paper at the bottom of the box.
   • Seal the box again with the plastic wrap to maintain the airtight environment.
3. Cooking Time:
   • Cooking times will vary depending on the type of food and the intensity of sunlight.
   • Generally, food will take longer to cook in a solar stove compared to conventional methods.
   • Check the food periodically to monitor its progress and ensure it is cooking evenly.
4. Monitoring Temperature:
   • If you have an oven thermometer, place it inside the stove to monitor the internal temperature.
   • Aim for a temperature range of 200°F to 300°F (93°C to 149°C) for effective cooking.

Tips for Different Types of Food on a Solar Stove

1. Vegetables:
   • Vegetables can be cut into small pieces and cooked in shallow pans.
   • Stir or rotate the vegetables periodically for even cooking.
2. Meat:
   • Cut meat into thin slices or small pieces to reduce cooking time.
   • Use a meat thermometer to ensure it reaches a safe internal temperature.
3. Soup and Stews:
   • Use a dark pot with a lid to cook soups and stews.
   • Allow more time for cooking, stirring occasionally to prevent sticking.

Safety Tips While Using Solar Stove

1. Handling Hot Surfaces:
   • Use oven mitts or gloves when handling hot cookware or opening the solar stove.
   • Be cautious of the hot surfaces and the steam that may escape when opening the plastic wrap.
2. Monitoring Cooking Process:
   • Regularly check the food to prevent overcooking or burning.
   • Adjust the position of the stove and the angle of the flap as needed to maintain optimal cooking conditions.
3. Avoiding Overheating:
   • If the stove becomes too hot, partially open the plastic wrap to release some heat.
   • Do not leave the stove unattended for long periods, especially during peak sunlight hours.

By following these safety guidelines, you can effectively use your solar stove to cook a variety of meals using the power of the sun. In the next section, we will explore the benefits of using a solar stove and how it contributes to sustainable living.

Benefits of Using a Solar Stove

Below are various advantages of solar stoves:-

Environmental Benefits

1. Reduced Carbon Footprint:
   • Solar stoves use the sun’s energy, which is a renewable and clean source of power.
   • By using a solar stove, you decrease reliance on fossil fuels, reducing greenhouse gas emissions and your carbon footprint.
2. Conservation of Resources:
   • Solar stoves do not require electricity, gas, or wood, conserving these finite resources.
   • Using solar energy helps to preserve natural habitats that are often destroyed to extract these fuels.
3. Reduction in Air Pollution:
   • Traditional stoves and cooking methods can release harmful pollutants into the air.
   • Solar stoves produce no smoke or harmful emissions, contributing to cleaner air and a healthier environment.

Economic Benefits

1. Cost Savings:
   • Once built, a solar stove requires no ongoing fuel costs, leading to significant savings over time.
   • Lower utility bills as you use less electricity or gas for cooking.
2. Low Maintenance:
   • Solar stoves are simple to maintain, with no moving parts or complex mechanisms.
   • Occasional cleaning and minor repairs are usually all that is needed, saving money on maintenance.

Practical Benefits

1. Portability:
   • Solar stoves are lightweight and easy to transport, making them ideal for camping, picnics, and outdoor activities.
   • They can be used in remote locations where conventional cooking methods are impractical or unavailable.
2. Versatility:
   • Solar stoves can cook a wide variety of foods, including vegetables, meat, bread, and even desserts.
   • They can also be used to pasteurize water, making it safe to drink in areas without access to clean water.
3. Safety:
   • Solar stoves do not involve open flames, reducing the risk of burns and accidental fires.
   • They are a safer alternative, especially in households with children or in areas prone to wildfires.

Educational and Community Benefits

1. Learning Opportunity:
   • Building and using a solar stove can be an educational project that teaches principles of renewable energy, sustainability, and science.
   • It can be a hands-on activity for schools, environmental clubs, and community groups.
2. Community Empowerment:
   • In regions with limited access to traditional fuel sources, solar stoves can provide a reliable cooking solution.
   • They can empower communities by providing a sustainable and independent method of cooking.

Health Benefits

1. Reduced Health Risks:
   • Traditional cooking methods, particularly those using wood or coal, can produce smoke and indoor air pollution, leading to respiratory problems.
   • Solar stoves eliminate these risks by providing a clean cooking method.
2. Improved Nutrition:
   • The ability to cook a variety of foods can lead to a more diverse and nutritious diet.
   • Solar stoves can help preserve vitamins and nutrients in food that might be lost with high-heat cooking methods.

Conclusion

Using a solar stove offers numerous benefits that extend beyond just cooking. It is an eco-friendly, cost-effective, and practical solution that contributes to a sustainable lifestyle. By harnessing the power of the sun, you can reduce your carbon footprint, save money, and enjoy the versatility and safety of solar cooking.

Additionally, it provides educational opportunities and can significantly impact communities by offering a reliable and independent cooking method.

Building and using a solar stove is a simple yet powerful way to embrace renewable energy and make a positive impact on the environment and society. Whether for daily use or special outdoor activities, a solar stove is a valuable addition to any household.

FAQs

How long does it take to cook with a solar stove?

Cooking times vary based on the type of food and the amount of sunlight. Generally, it takes longer than conventional methods, but preheating the stove can help.

Can I use a solar stove in winter?

Yes, as long as there is sufficient sunlight. However, cooking times may be longer due to lower ambient temperatures.

What foods can I cook with a solar stove?

You can cook a wide range of foods, including rice, vegetables, meats, and even bake cookies or bread.

How do I clean a solar stove?

Clean the reflective surfaces with a soft cloth and mild detergent. Ensure all components are dry before storage.

Is it safe to leave a solar stove unattended?

It’s best to monitor the stove while in use to prevent any accidents or uneven cooking.

Additional Sources

• https://www.youtube.com/user/GreenPowerScience
• Solar Cooking for Home & Camp” by Linda Frederick Yaffe
